CNC Machinery (19387C)
Manufactured 1997
Serial# 10092

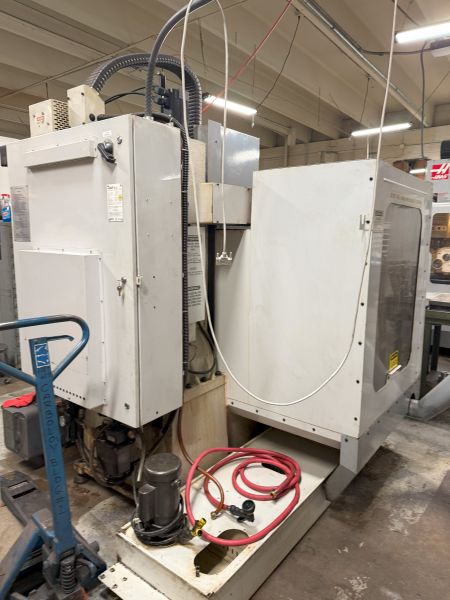

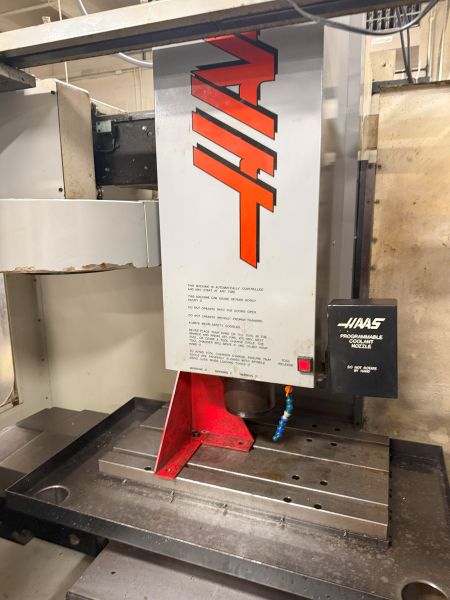

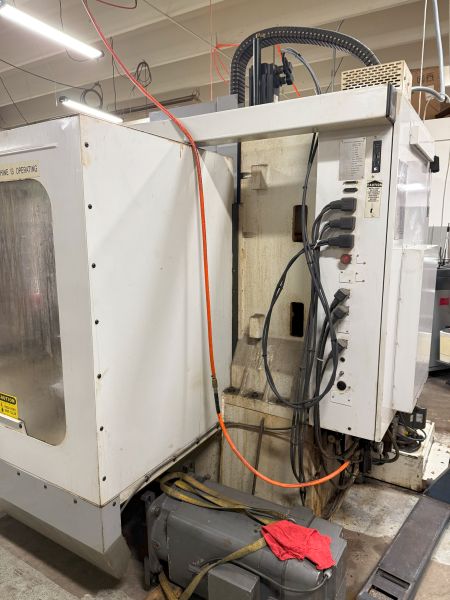

Haas VF-0 Vertical Machining Center

Specifications
Travels - X Axis: 20"
- Y Axis: 16"
- Z Axis: 20"
Spindle Speeds: 0 - 7500 RPM
Spindle Taper: CT40
Feed Rate: 0.1 - 500 IPM
Tool Magazine Cap.: 20 tool ATC
Tool Weight: 12 lbs. max.

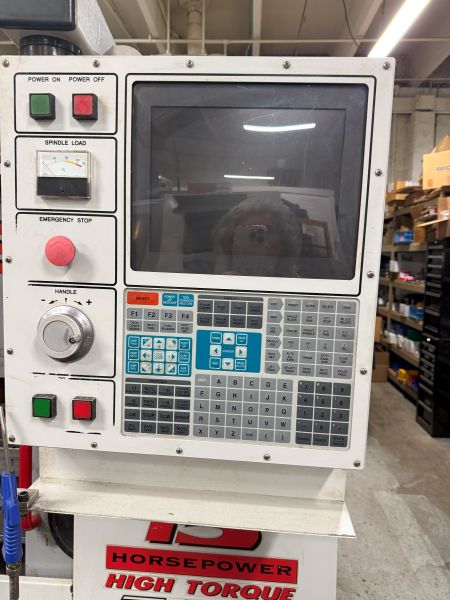

Control: Haas CNC Controller		Features
  • - Table size: 26" x 14"
  • - Max. table load: 3,000 lbs.
  • - Spindle - nose to table: 4" - 29"
  • - Rapid traverse rate: 710 IPM
  • - Cutting feed rate: 0.1 - 500 IPM
  • - Motor: 15 HP
  • INCLUDES:
  • - Chip auger
  • - Coolant tank
  • - 4th Axis
  • - Rotate and scaling
  • - Rigid tap
  • - Macros
  • - Cutter comp
  • - Spindle orientate
  • - Brushless motors
  • NOTE: Recently had over $10,000.00 maintenance work performed - as listed below:
  • - Replaced low voltage power supply
  • - Rebuilt and recharged counterbalance tank
  • - New Z Axis motor cable
  • - New display screen
  • - New Y Axis wiper
  • - New spindle alignment hardware
  • Excellent running machine.
  • Video available.
