Compression Molding (80661)
Manufactured 1981

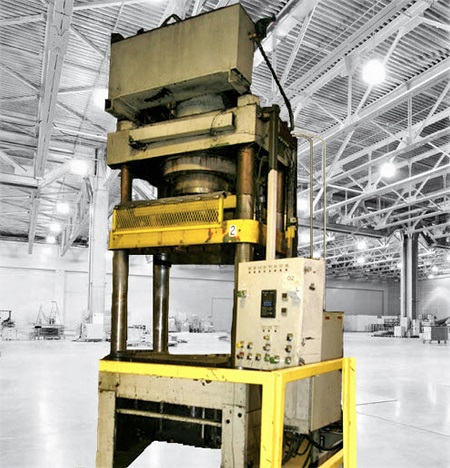

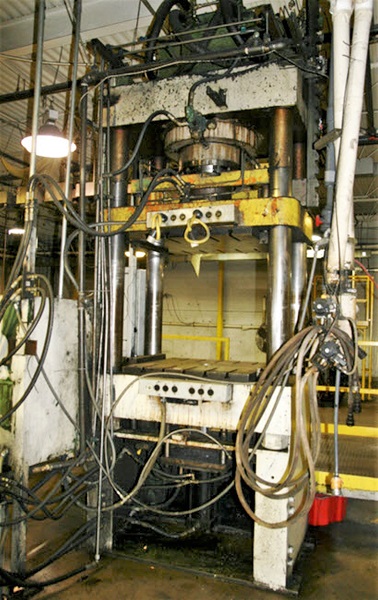

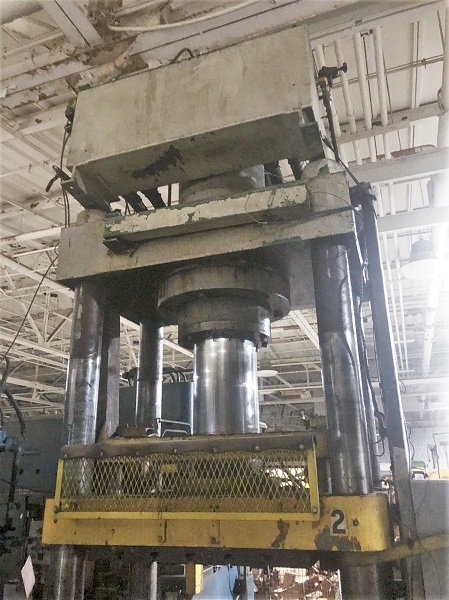

220 Ton Rodgers 4-Post Transfer Comp. Pr

Features
  • Capacity: 220 Ton @ 1700 PSI
  • Max. stroke: approx. 18"-24"
  • Max. daylight to bed: 48" (43-1/2" between
  • bolsters)
  • Overall bed & ram area: 58" RL x 36" FB (3-1/2"
  • hole in bed)
  • Distance between posts: 42" rL x 21" FB
  • Bolster plate sizes: 2) 2-1/4" x 36" RL x 36" FB
  • (bed/ram)
  • Usable bed area: 42" RL x 36" FB
  • Floor to bed: 51-1/2"
  • Post size: 6"
  • Cylinder size: 6" dia.

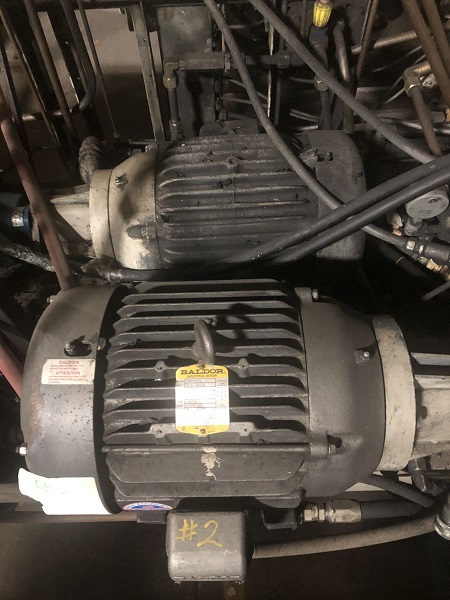

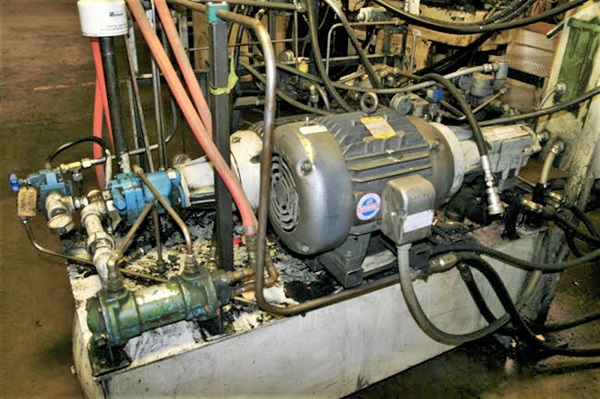

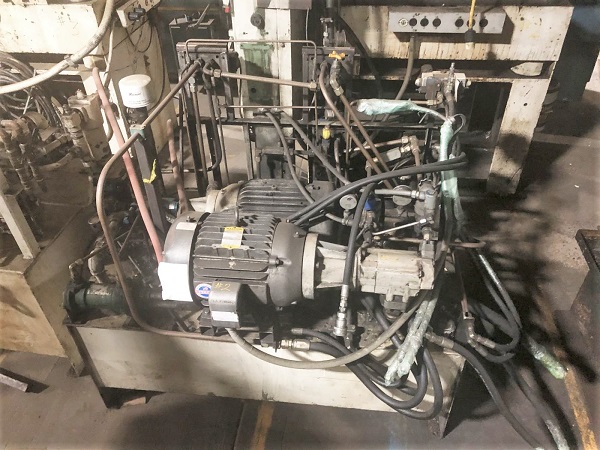

  • Hydraulics (floor mounted): 20 HP, 230/460 V

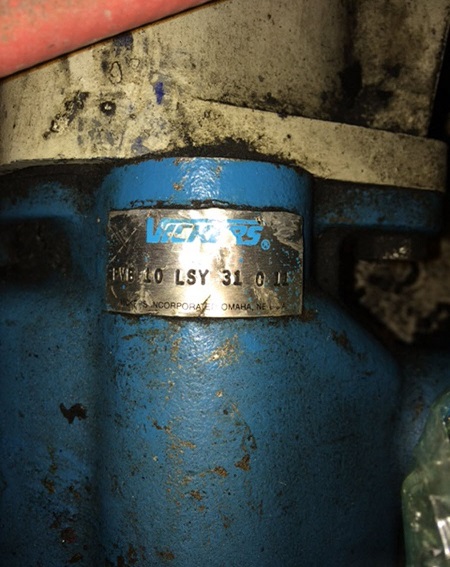

  • Motor-Vickers Piston Pump No. PVB10LSY31011,

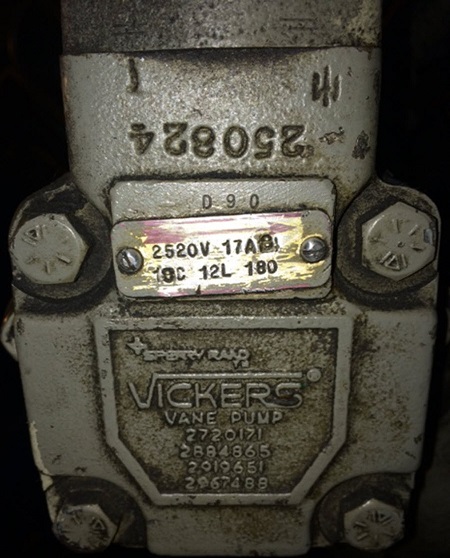

  • 15 GPM, Vickers double van pump no. 2520V17AB,
  • 10C12L180

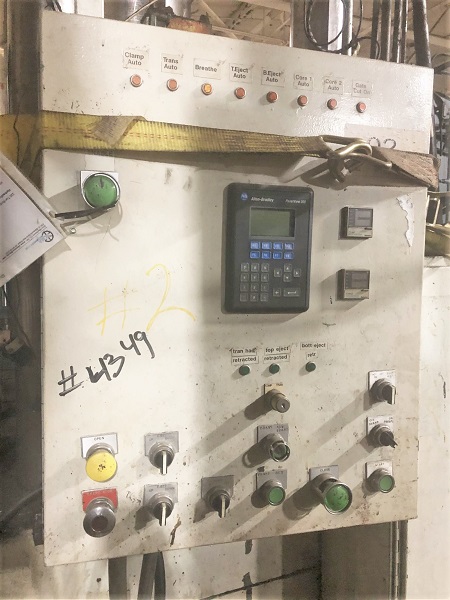

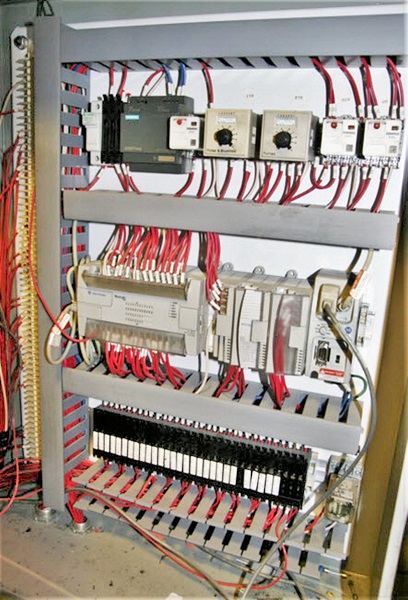

  • Press controls: "AB Micrologix" 1200 PLC Control,
  • AB Panelview "300" Touch Screen
  • Electrics: 15 HP, 230-460 V motor
  • Dimensions: 15' H x 7' RL x 6' FB
  • Weight: 40,000 lbs.
  • NOTES:
  • - Safety Latch on Ram
  • - Floor standing
  • - Bottom transfer cylinder - 12" stroke
  • - Top & Bottom ejectors
  • - Mold heaters top & bottom
  • 2 Available.
  • Photos available.
  • PRICE FOR MACHINE "AS iS".....$37,500.00
  • PRICE FOR MACHINE RECONDITIONED: $69,500.00
  • **Reconditioning includes testing, replacement of
  • worn and/or missing components, functionality,
  • structural integrity, prep/paint package. return
  • priviledge and loading. 33% down to initiate the
  • reconditioning process.
