Presses (I5026)
Manufactured 2008

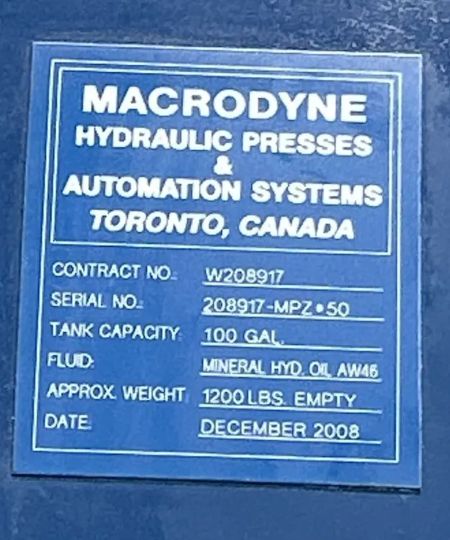

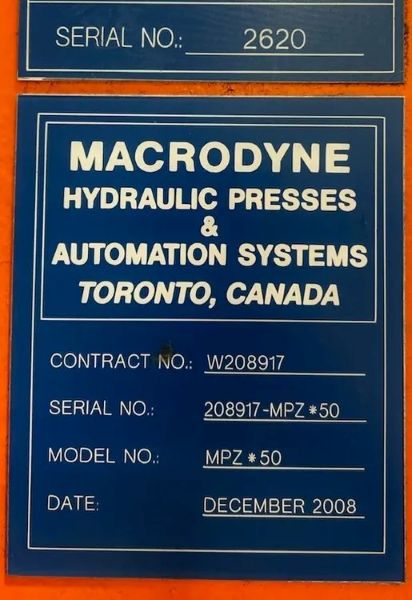

Serial# 208917-MPZ*50

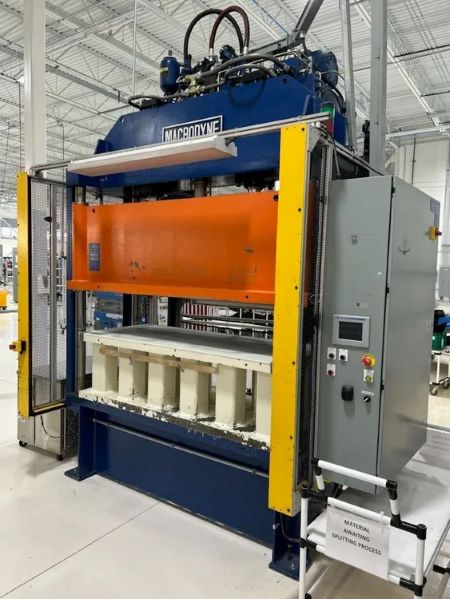

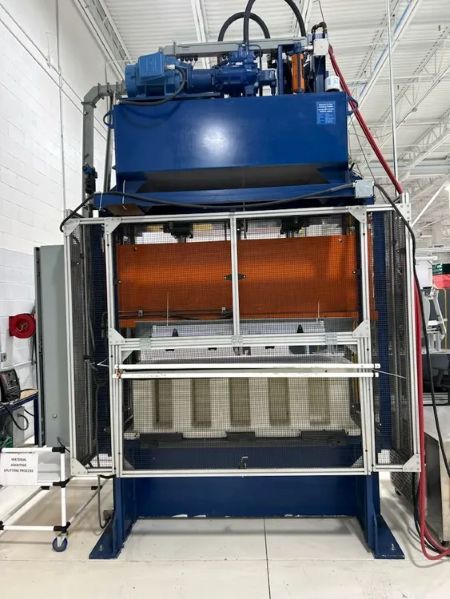

50 Ton Macrodyne 4-Post Hydraulic Press

Specifications
CAPACITY: 50 ton
STROKE: 20"
BED AREA: 72" LR x 30" FB
MODEL: MPZ-50		Features
  • Daylight opening: 36"
  • Pressing force: 50 ton
  • Maximum return force: 1.5 ton

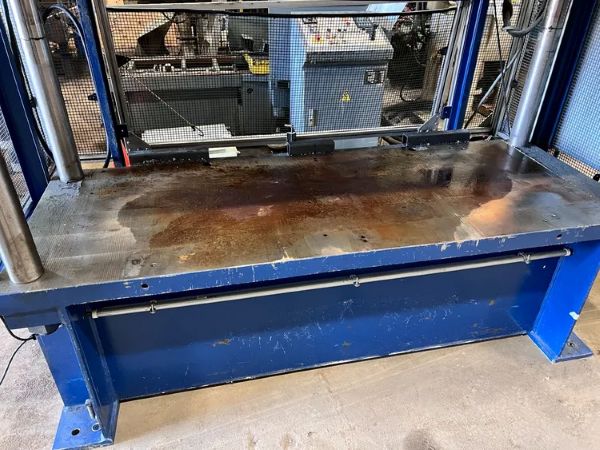

  • Usable bed size: 72" LR x 30" FB
  • Usable slide size: 72" LR x 30" FB
  • Distance between columns: 72" LR x 22" FB
  • Open daylight: 36"
  • Closed daylight: 16"
  • Stroke: 20"
  • Speeds - Approach: 19.5@5.0/second = 3.90 sec.
  • Pressing: 0.5" @ 0.5"/second = 1.00 sec.
  • Return: 20.0"@5.0/second = 4.00 sec.
  • Shifting time etc. = 1.00 second
  • Total dry cycle = 9.90 sec.
  • Hydraulic system operating pressure: 2,600 PSI
  • Electrics: 480/3/60

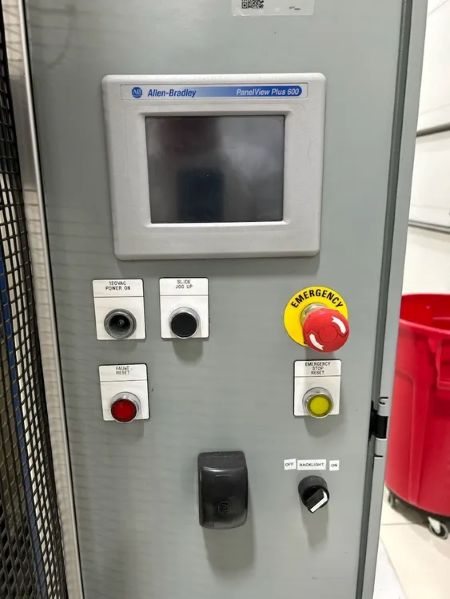

  • Controls: Allen Bradley Panelview 600
  • Control features: Programmable pressing speed, slide position and monitoring via position
  • transducer, multi-mode capability, programmaable dwells, jog function,
  • security screen, fault diagnositcs.
  • NOTE: Chiller unit in video NOT INCLUDED.
  • AVAILABALE AT ADDITIONAL COST:
  • - 70" LR x 30" FB x 19-1/2" H Steel spacer...........POR
