SWING OVER BED: 11"
DIS. BTWN. CENTERS: 20"
SWING - CROSS SLIDE: 5.75"
SPINDLE NOSE: Hardinge tapered
SPINDLE BORE: 1.25"
RANGE (RPM): VS 125-3000 | - - Swing over carriage: 9"
- - Compound slide travel: 3"
- - Centers - tailstock flush: 18"
- tailstock overhung: 20"
- - Powerfeed range: 0.25 - 7 IPM
- - Longitudinal feed rate: 0.31 - 7 IPM
- - Cross feed rate: 0.18 - 4 IPM
- - Tailstock spindle travel: 3.75"
- - Tailstock spindle taper: MT2
- - Spindle - w/step chucks: 1-6"
- - w/jaw chucks: 5"
- - w/jaw chuck thru spinde: 1.15"
- - w/round 5C Hardinge collets: 1.06"
- - w/hexagon 5C Hardinge collets: 0.87"
- - w/square 5C Hardinge collets: 0.75"
- - Range of threads in gearbox: 11-108
- - Number of thread changes in gearbox: 27
- - Motor: 2-speed, 530/1710 RPM
- - Electrics: 220V AC only/3/60 - 3.4 AMPS
- - Lots of collets

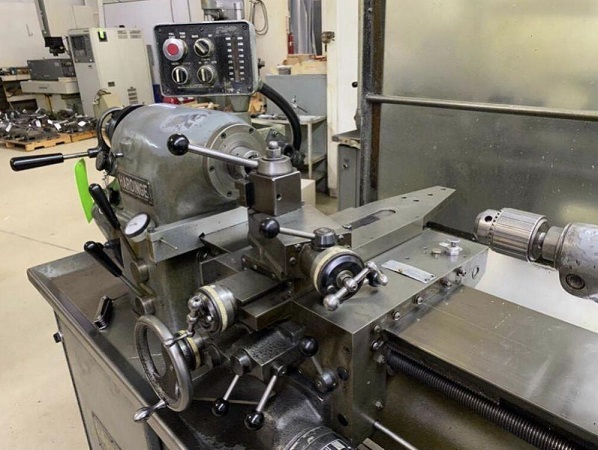

- Photos available.
|
